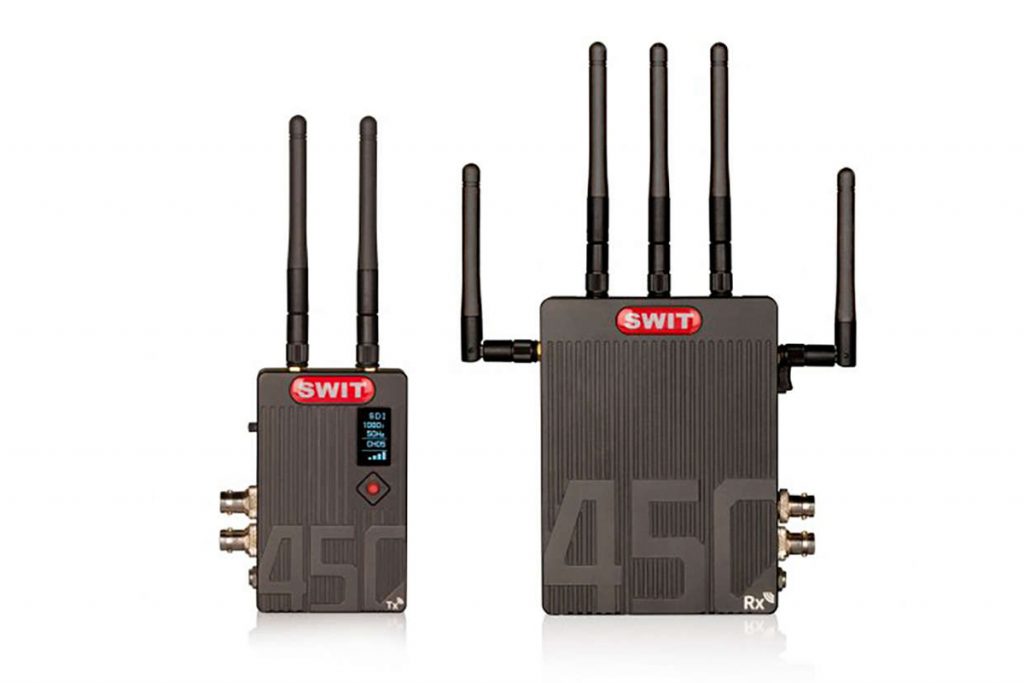

Swit SW-M450 Wireless Görüntü Aktarıcı

In Line-of-Sight, SW-M450 supports non-compressed 3G/HD-SDI and HDMI 450 meters (1500 feet) transmission, with less than 1 millisecond latency.
SW-M450 supports SDI & HDMI embedded audio (CH1&2) transmission, and supports SDI Timecode & Trigger transmission.

OLED Display & Channel Switch

DFS comply

Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.
On the Tx, push the joystick up/down to switch wireless channels from CH0 to CH10, and indicates the signal bars. When changing to a new channel, the paired Rx will follow the new channel automatically.
On the Rx, push the joystick right to enter wireless condition analysis, and after 10 seconds, the OLED will display the signal strength of all 11 wireless channels, and helps to select a best channel to work.
Support 3-4 pairs wireless channels to work together in one location.

* For DFS comply, use CH 0/1/2/3/9/10 only, or switch to AUTO mode

Instant Playback Mode

Some of the cine cameras like Alexa Mini, Red Raven, when operate playback on the camera, the output SDI clock was interrupted and will break the wireless video transmission.
SW-M series provide the “Instant Playback” mode, to support the constant wireless video receiving.
On the Tx, push the joystick right to enter menu, and set “InsPB” to “ON”, to switch on the “Instant Playback” Mode.

Package

SW-M450 standard package includes:

1x Transmitter
1x Receiver
1x Articulating arm trestle (Cold shoe and 1/4”)
1x D-tap to pole-tap DC cable
1x AC-DC power adaptor
1x Carrying case (for everything)

SW-M450 1T2R Kit includes:

1x Transmitter
2x Receiver
1x Articulating arm trestle (Cold shoe and 1/4”)
2x D-tap to pole-tap DC cable
2x AC-DC adaptor
1x Carrying case (for everything)
